YillumaxTM Vehicle License Plate Grade Reflective Sheeting VG8200&VG8500 series are three kind of 5 years durable product with enclosed high reflecting index micro spherical glass beads in a unique coating layer, while it performs very well to return the incident lights overall and can be embossed by pressure machine.
The VG8200&VG8500 reflective sheeting is available in normal three colors, with a choice of two substrates: PET, Acrylic. The product is self-adhesive with PSA transparent and release liner. The standard available width sizes 0.61m, 0.62m, 1.22m, 1.24m. It is easy to be cutting with computerized plotter and thermal transfer printing. It is suitable for applying to aluminum boards for embossing different license plates. More details pls check the overview table or Spec sheet.

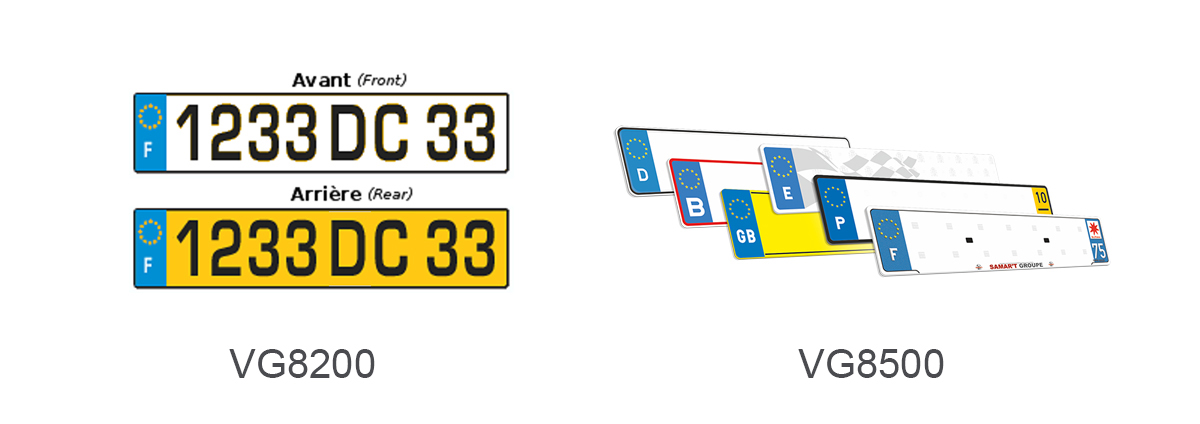

YillumaxTM VG8200&VG8500 Reflective Sheeting is produced under DIN74069-1996-07 Table 2 and ISO7591-1982(E) Table 1 standard of photometric properties. The products which are ideal for the fabrication of high-quality vehicle license plates. The plates can be embossed and roll coated with either transparent roll coating inks or hot stamping of opaque tapes to produce attractive license plates which function 24 hours a day to enhance nighttime safety and the legibility of the vehicle identification system. This cost-effective film performs well in many applications.

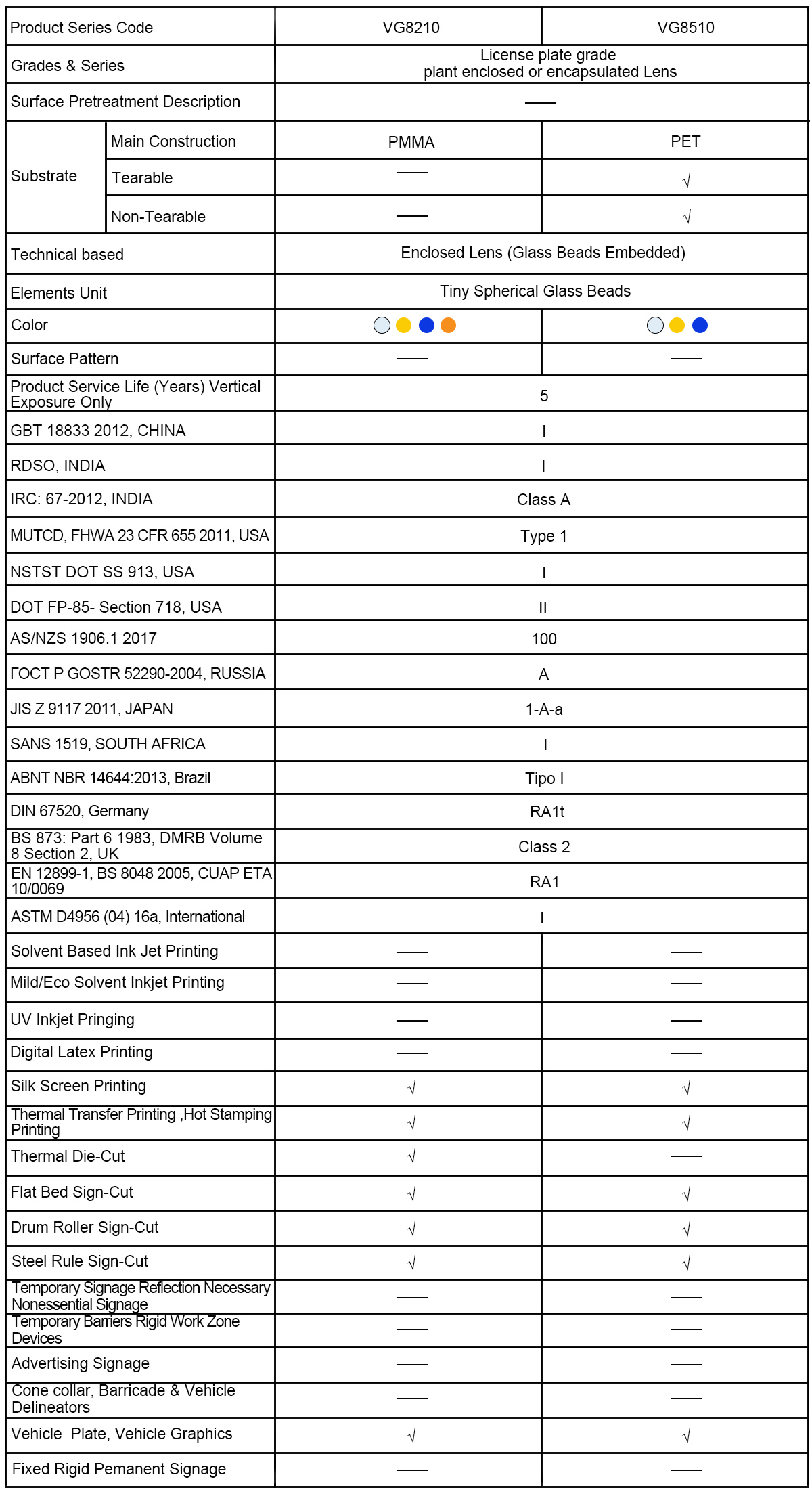

Quick view
Performance: Match the coefficient of retro-reflection values of DIN74069-1996-07 Table 2 and ISO7591-1982(E) Table 1, L-S-300C Table II Ref.1 (Class 1), O'ZDST640:2014. See download Spec sheet for complete photometric performance list.
Durability: 5 Years Durability Life Vertical Exposure only.
Face: PET, ACRYLIC Retro-reflective Film with Retro-reflectivity element.

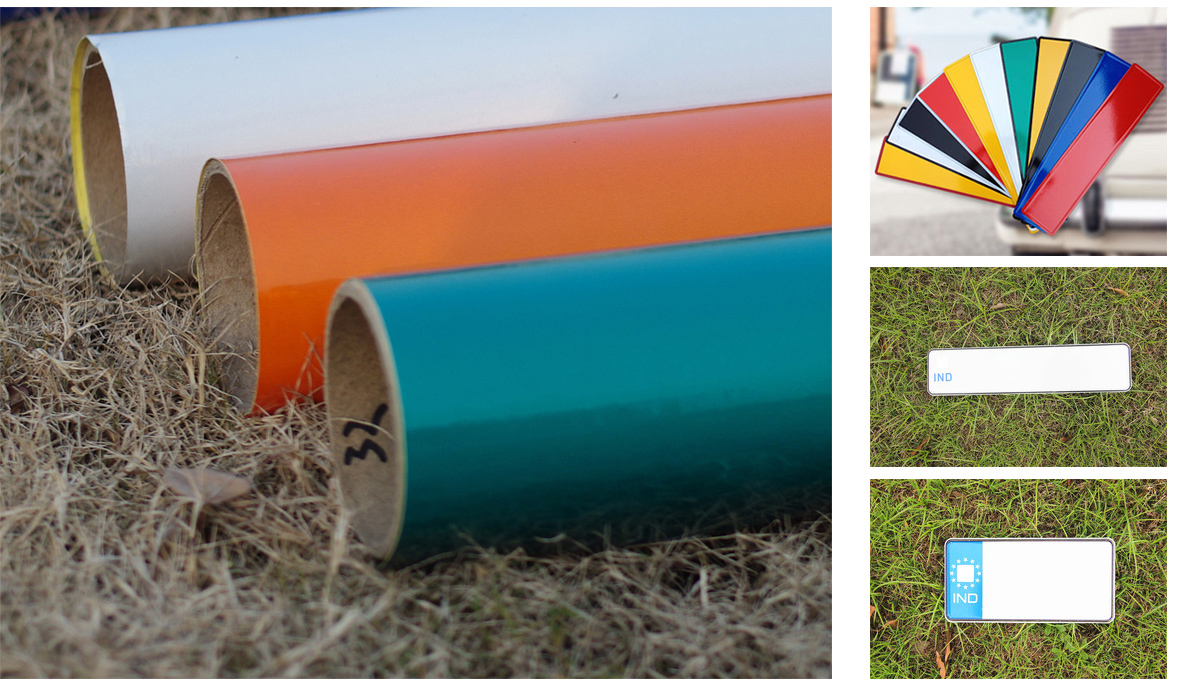

Colors: White, Yellow, Blue.
Adhesive: Permanent Pressure Sensitive transparent (silver) glue.
Liner: Single PE and Double sides silicone Coated Kraft release paper or Polymeric Film.
Application Surface: New PVC Curtains or Pre-cleaned hard surface (Wood and plastic boards are not recommended).
Width: 0.61m, 0.62m, 1.22m, 1.24m.
Length: 45.7m, 91.4m
Further Information
For more technical information such as adhesion, applications, storage etc. Please download the YillumaxTM VG8200&VG8500 product spec sheet. The YillumaxTM application manual provides more Information on product usage and is available as a download. Orinquire more details from us directly.
