YillumaxTM High intensity Grade Reflective Sheeting HG1130 series is a kind of 7 years durable product with encapsulated high reflecting index micro spherical glass beads in a special coating layer, while it performs very well to return the incident lights overall.
The HG1130 reflective sheeting is available in normal seven colors, with non-tearable PET substrate and PSA white glue and release liner. The standard available width sizes 1.22m, 1.24m. It is easy to be cutting with computerized plotter. It is suitable for applying to the pre-cleaned steel, aluminum and plastic boards (Plastic Boards should be tested for suitability before use).
This Grade Reflective Sheeting can also be pre-coated with slant double colored strips or hazard warning shapes on the surface for finally using as barricade or hazard tape. More details pls check the overview table or Spec sheet.
YillumaxTM HG1130 Reflective Sheeting with high coefficient of retro-reflection values which match the photometric performance of standards: ASTM D4956 Type III and EN-12899 RA2. The products which are designed for nonspecification applications which only require conformance of the high reflective index for traffic control devices. The product is ideal for a wide range of end uses including temporary road signs, advertising signage, traffic calming schemes, delineator reflective tape, and construction site signs. This cost-effective film performs well in many applications.

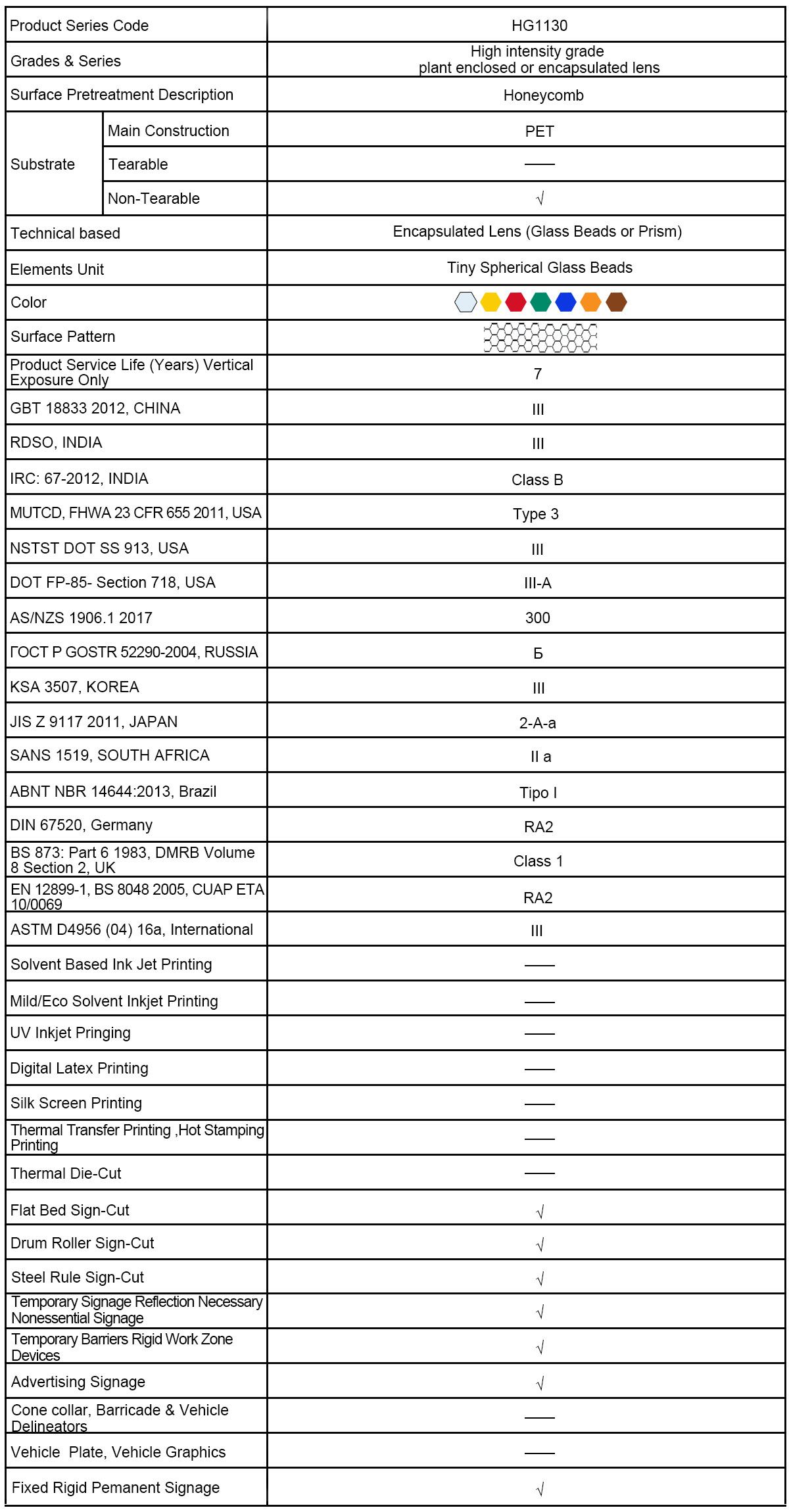

Quick view
Performance: Match the coefficient of retro-reflection values of ASTM D4956 Type III and EN-12899 RA2. See download. Spec sheet for complete photometric performance list.
Durability: 7 Years Durability Life Vertical Exposure only.
Face: PET, Retro-reflective Film with Retro-reflectivity element.
Colors: White, Yellow, Red, Green, Blue, Orange, Brown.
Adhesive: Permanent Pressure Sensitive white glue.
Liner: Single PE and Double sides silicone Coated Kraft release paper or Polymeric Film.
Application Surface: New PVC Curtains or Pre-cleaned hard surface (Wood and plastic boards are not recommended).
Width: 1.22m, 1.24m.
Length: 45.7m, 91.4m
Further Information
For more technical information such as adhesion, applications, storage etc. Please download the YillumaxTM HIG1130 product spec sheet. The YillumaxTM application manual provides more Information on product usage and is available as a download. Or inquire more details from us directly.
