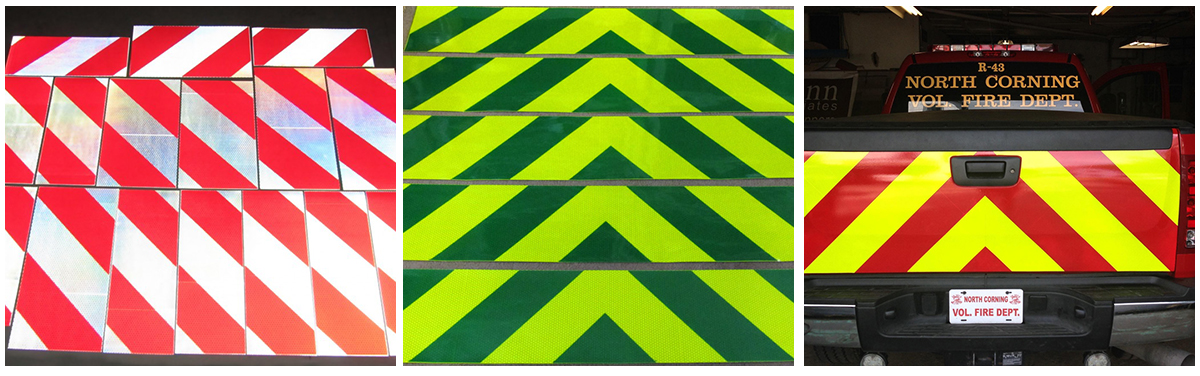

YillumaxTM Hazard Obstacle Warning Series Chevron Guide Marker type CEP7220 Series Reflective Sheeting could be different kinds of 3 years durable products with encapsulated high reflecting index microscopic corner cube reflectors in a double color pre-coating layer, while it performs very well to return the incident lights overall.
The series reflective sheeting is just customized of different patterns depend on client’s request. We can supply different colors chevron guide marker with customized sizes. Different surface film, different direction of strips for this series provides you different choices (Like CEP7220 (-10) etc.). This cost-effective film performs well in many applications.
Quick view

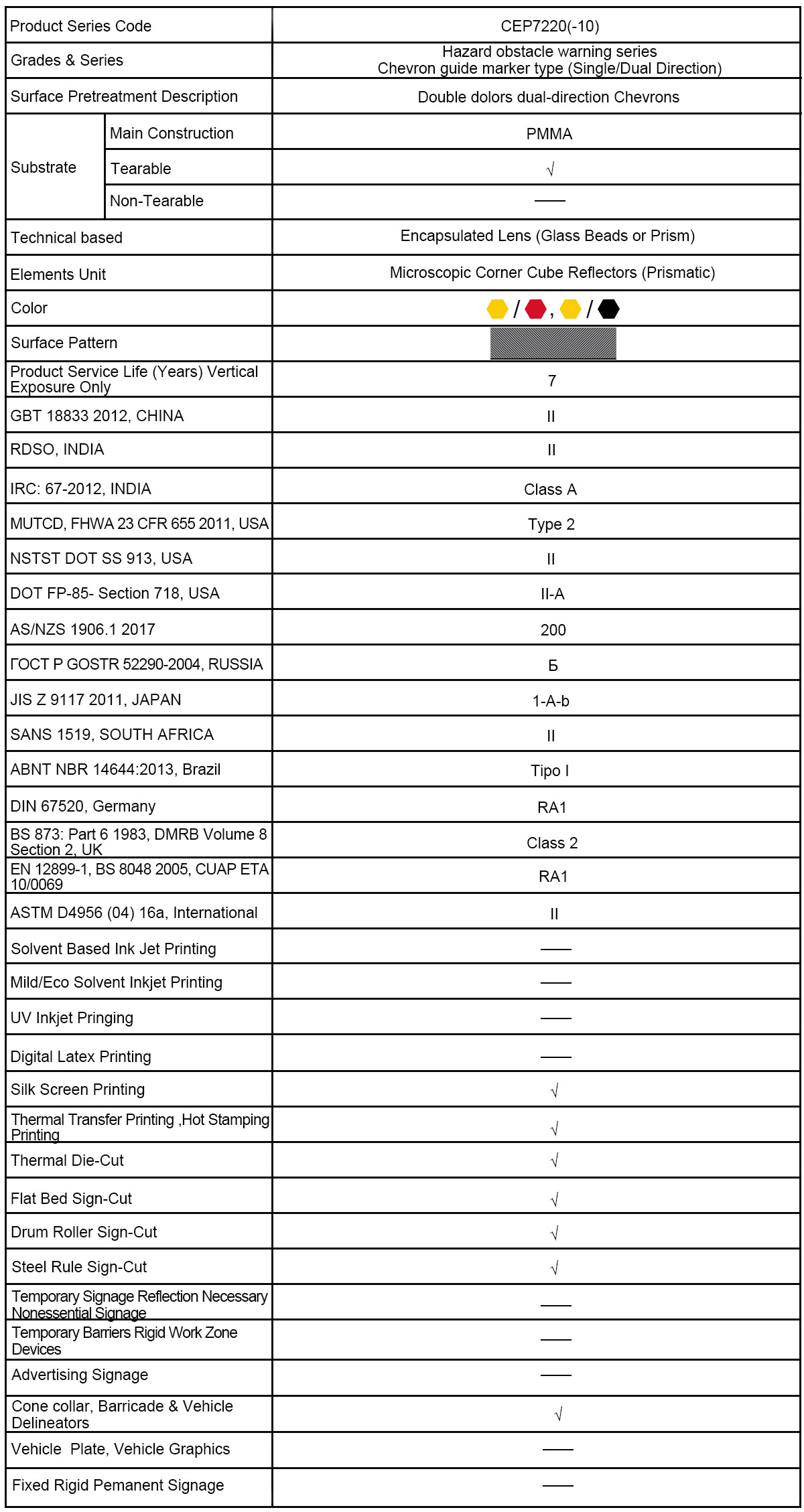

Performance: Match the coefficient of retro-reflection values of ASTM D4956 Type II, EN-12899 RA1 or See download Spec sheet for complete photometric performance list of each grade.
Durability: 3 Years Durability Life Vertical Exposure only.
Face: Acrylic Retro-reflective Film with Retro-reflectivity element.
Colors: customized
Adhesive: Permanent Pressure Sensitive white glue.
Liner: Single PE and Double sides silicone Coated Kraft release paper or Polymeric Film.
Application Surface: New PVC Curtains or Pre-cleaned hard surface (Wood and plastic boards are not recommended).
Width: 5cm, 10cm, 20cm.
Length: 45.7m, 91.4m.
Further Information
For more technical information such as adhesion, applications, storage etc. Please download the YillumaxTM each grade product spec sheet. The YillumaxTM application manual provides more Information on product usage and is available as a download. Or inquire more details from us directly.
